TopSolid’Design to design, create, analyze… and much more. Even today, many projects begin as a scribble on a paper towel. But when it comes time to move up a gear, nothing like powerful and easy Computer Aided Drawing software! TopSolid’Design, with its simple and friendly interface (user friendly) will allow you to quickly transform your scribbles notes in concrete project. Using the “Parasolid®” 3D modeller, TopSolid’Design will allow you to design parts or assemblies in totally 3D parametric. You can do quick and easy 2D draft, or 3D annotations. The only limit is your imagination!

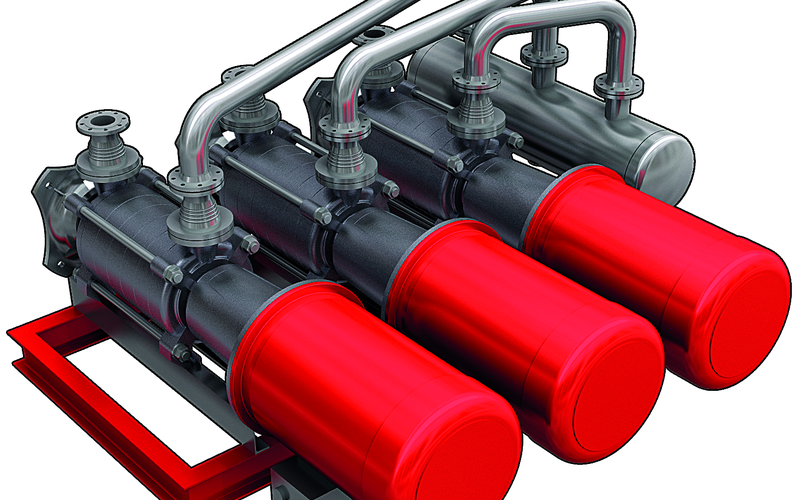

In the “Pro” version, TopSolid add the following elements: weld assemblies design, sheet metal design, piping, various mechanical component libraries (screws, nuts, bolts, etc.), mechanism simulation and analysis of finite elements.

TopSolid’Design can open various files as SolidWorks drawings, SolidEdge®, Inventor®, STEP, IGES, Parasolid, DXF and DWG as well as Catia® and NX® files (optional translator).
